Holosun AEMS-MACRO Review: A Bigger Enclosed Red Dot

If you’ve been waiting for Holosun to make a larger enclosed pistol optic, the AEMS-MACRO is one to get excited about. It takes the enclosed design that makes optics like the 509T appealing and adds a taller window, a forward-facing brightness sensor, and your choice of a red, green, or gold reticle.

You could think of it as something along the lines of an enclosed 507COMP. But we’d describe it more as an aluminum 509T with a window that’s been stretched upward and an updated automatic brightness system. That comparison gives you a pretty good idea of what makes the MACRO interesting.

For anyone who likes a roomy sight picture but also wants an enclosed emitter, this gives you another way to set up your pistol around what you actually enjoy shooting.

Starts at $369.99 Buy the Holosun AEMS-MACRO At The Best Price

The AEMS Family Comes to Pistols

Until this move into pistol optics, the AEMS name has been associated with Holosun’s enclosed rifle sights. The AEMS-MACRO brings that familiar boxy look into a pistol optic, with a 0.9 × 0.9-inch window as its main attraction.

This is a pistol optic with its own mounting arrangement, so the AEMS name doesn’t mean it uses the same mount as an AEMS rifle sight. The MACRO uses a 509T footprint and includes an RMR-to-509T adapter plate.

The appeal is easy to understand... more window height, an enclosed emitter, and familiar features like Solar Failsafe, Shake Awake, and a side-loading battery.

How Big Is the AEMS-MACRO Window?

The MACRO’s square window measures 0.90 inches wide by 0.90 inches tall. To put that into perspective, here’s how it compares with the 509T and 507COMP.

Compared with the 509T

The MACRO has the same listed window width as the 509T, but adds 0.24 inches of height. That works out to approximately 36% more window height.

That’s why the “stretched-out 509T” comparison explains it best. The extra room is above and below the center of the window, which is especially relevant when you’re thinking about how the dot moves during recoil.

Compared with the 507COMP

A lot of people online compare the AEMS-MACRO to the 507COMP because of its larger window, and obviously we can see why. But when you look at the dimensions, the main difference is the shape: the 507COMP is wider, while the AEMS-MACRO is slightly taller.

The 507COMP’s window measures 1.10 inches wide by 0.87 inches tall, compared with the MACRO’s 0.90 × 0.90-inch window. So the COMP gives you more room from side to side, while the MACRO gives you a more square-shaped view with a little extra height.

If you prefer a wider sight picture, the 507COMP may be the better fit. If you’re looking for a taller window and like the idea of an enclosed emitter, the AEMS-MACRO may be more your style. It really comes down to what you want to see when you bring the pistol up.

Why Would You Want a Taller Window?

A bigger window can look nice when you first pick up the pistol, but the extra height has a practical appeal once the gun starts moving.

During recoil, the dot moves within your view of the window. With a shorter window, it can disappear beyond the edge and then come back into view as the pistol settles. A taller window gives that movement more room, which can make it easier to keep track of the dot through more of the recoil cycle.

That’s the main reason some shooters prefer a taller optic: they want to see more of what the dot is doing between shots.

It doesn’t mean the MACRO will keep the dot visible through every shot for every shooter. Your pistol, ammunition, grip, and position behind the optic all affect what you see. Still, the added vertical space gives you more room before the dot disappears beyond the window’s edge. If you’ve ever used a smaller optic and wished you could follow the dot a little longer as the pistol moves, that’s the benefit a taller window can offer.

Why Competition Shooters May Like It

For competition shooters, being able to follow the dot’s movement can make the sight picture feel easier to read between shots. A larger window can also be more forgiving when your eye isn’t perfectly centered behind the optic.

That makes the MACRO an interesting option for someone who enjoys the window height of a competition optic but prefers an enclosed emitter. It combines two preferences that haven’t always come together in the same Holosun pistol sight.

Why It Makes Sense on a Range Gun

You don’t have to shoot matches to appreciate a larger window. Sometimes you just want a sight picture that feels more open and comfortable on the pistol you enjoy taking to the range.

If keeping the optic as small as possible isn’t your main priority, the MACRO gives you more room to see through it. That alone may be a worthwhile reason to choose it.

An Enclosed Emitter with a 7075-T6 Aluminum Housing

The AEMS-MACRO uses a 7075-T6 aluminum housing with a hard-anodized finish. Its enclosed design keeps the emitter and the internal optical path protected from rain, dust, lint, and other debris.

The outer lenses can still get dirty, so an enclosed optic isn’t maintenance-free. The advantage is that debris can’t fall directly into an exposed emitter area and block the projected reticle.

This is also one of the distinctions between the MACRO and the 509T. The MACRO uses aluminum, while the 509T uses titanium. They share the enclosed concept, but they’re different products with different housing dimensions and materials.

The MACRO measures 1.62 × 1.20 × 1.40 inches and has a listed body weight of 2.5 ounces. Holosun also lists IPX8 water resistance and 5000G vibration resistance. This is an optic built around a generous window, and its size reflects that.

What Footprint Does the AEMS-MACRO Use?

The AEMS-MACRO uses the 509T clamping footprint, with RMR compatibility provided by the included adapter plate.

That distinction matters when you’re figuring out what fits your pistol. The optic itself doesn’t bolt directly onto an RMR cut in the same way a 507COMP does. The included RMR-to-509T plate provides the interface for the MACRO to clamp onto.

If your pistol already has a standard 509T-compatible plate, the MACRO shares that mounting interface. That’s good news if you’re considering a larger window and already have a 509T setup. You’ll still want to confirm clearance for the MACRO’s larger housing with your particular slide and plate.

For pistols with their own proprietary optics systems, the correct pistol-specific plate is still part of the equation. Having an adapter in the box doesn’t make every optics-ready slide an automatic fit.

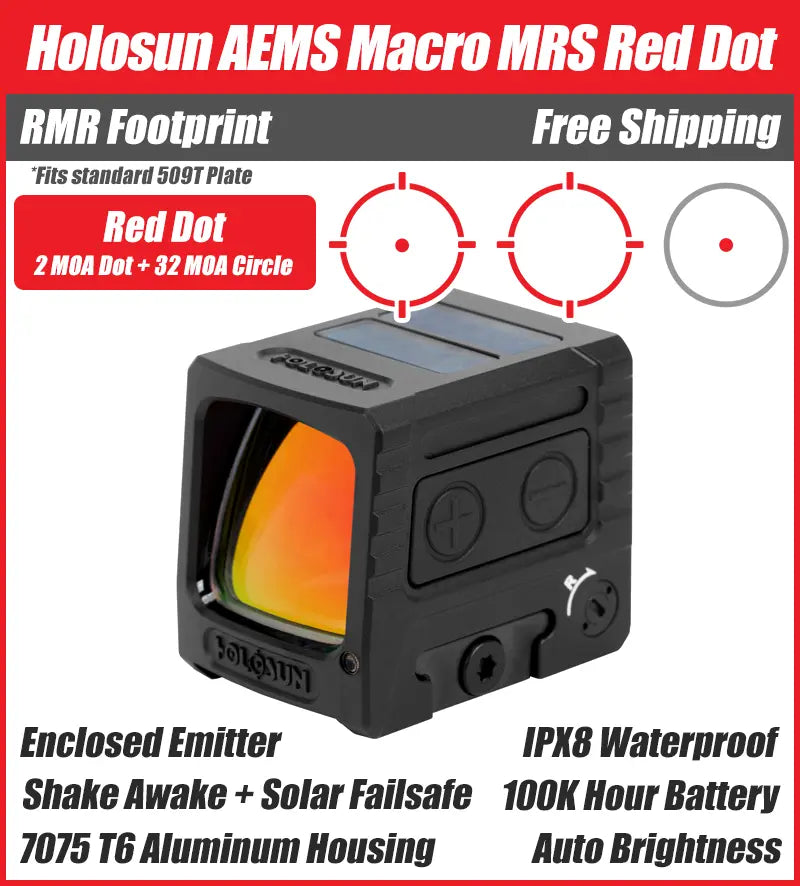

Red, Green, or Gold Reticles

The AEMS-MACRO comes in red, green, and gold reticle versions, giving you another choice in how you want your sight picture to look. These are separate models; one optic doesn’t switch between all three colors.

Its Multi-Reticle System lets you select a 2 MOA dot, a circle, or a circle-dot combination. You can keep the view simple with the dot alone or use the circle options if you prefer a more noticeable reticle.

We like having those choices because people don’t all see or enjoy the same reticle the same way. The color and pattern you find easiest to pick up may be different from what someone else prefers.

Automatic Brightness with a Forward-Facing Sensor

Along with the window, the forward-facing light sensor is one of the MACRO’s more interesting features.

In automatic mode, the sensor adjusts reticle brightness in response to the light it detects. Because it faces forward, it is positioned to sample light from the direction you’re aiming. The practical appeal is brightness adjustment that takes the scene ahead into account, especially when lighting around the shooter and downrange differs.

That describes the design’s intended benefit; how well it handles a particular lighting transition is something to evaluate in actual use. For shooters who prefer choosing their own brightness, the MACRO also includes manual control with eight daylight and four night-vision-compatible settings.

Having both options is useful. You can use automatic adjustment when you want the optic to manage brightness, or manual mode when you want a consistent setting.

Solar Failsafe, Shake Awake, and a Side-Loading Battery

The MACRO includes several of the convenience features people look for in a Holosun optic.

Solar Failsafe provides an additional power source when sufficient light reaches the solar panel. It can serve as a backup under suitable lighting conditions. The optic still uses a replaceable CR1632 battery; the solar panel doesn’t recharge that battery.

Shake Awake lets the optic enter a sleep state after inactivity and wake with movement. Memory retains your settings, while Lockout Mode helps prevent accidental button changes.

The side-loading battery tray is another welcome feature. You can replace the CR1632 without removing the optic from its mount.

Holosun lists battery life at up to 100,000 hours. That’s a maximum rating, with actual runtime depending on brightness, reticle selection, and use. For most owners, the more immediately useful detail is that a battery change doesn’t require taking the optic off the pistol.

AEMS-MACRO Technical Specifications

AEMS-MACRO vs. 509T vs. 507COMP: Which One Fits What You Want?

These three optics give you different combinations of window shape, housing design, and features.

Those feature differences are reflected in Holosun’s listings for the 509T and 507COMP.

For us, the MACRO’s appeal is the combination: a tall window, an enclosed emitter, multiple reticle colors, and the option to let the optic handle brightness automatically.

If you like the 509T but have always wished for more room above and below the dot, the MACRO makes a lot of sense. If you like the 507COMP’s spacious view but want an enclosed design, it gives you another option to consider—as long as you’re comfortable trading some window width for that enclosed housing.

Starts at $369.99 Buy the Holosun AEMS-MACRO At The Best Price

Starts at $429.99 Buy the Holosun 509T At The Best Price

Starts at $369.99 Buy the Holosun 507COMP At The Best Price

Our Thoughts on the Holosun AEMS-MACRO

We’re glad to see Holosun giving pistol owners more choices. Some shooters want the smallest optic they can comfortably use. Others want a bigger window, an enclosed emitter, a particular reticle color, or more control over how brightness works.

The AEMS-MACRO brings several of those preferences together. Its square window is a meaningful step up in height from the 509T, and it’s even slightly taller than the 507COMP’s while keeping the emitter enclosed. Add the forward-facing sensor, Solar Failsafe, and familiar 509T mounting interface, and you have an interesting new direction for the AEMS family.

Whether you’re putting together a competition pistol, changing up your favorite range gun, or simply looking for a larger enclosed Holosun, the MACRO gives you another way to make that setup your own.
