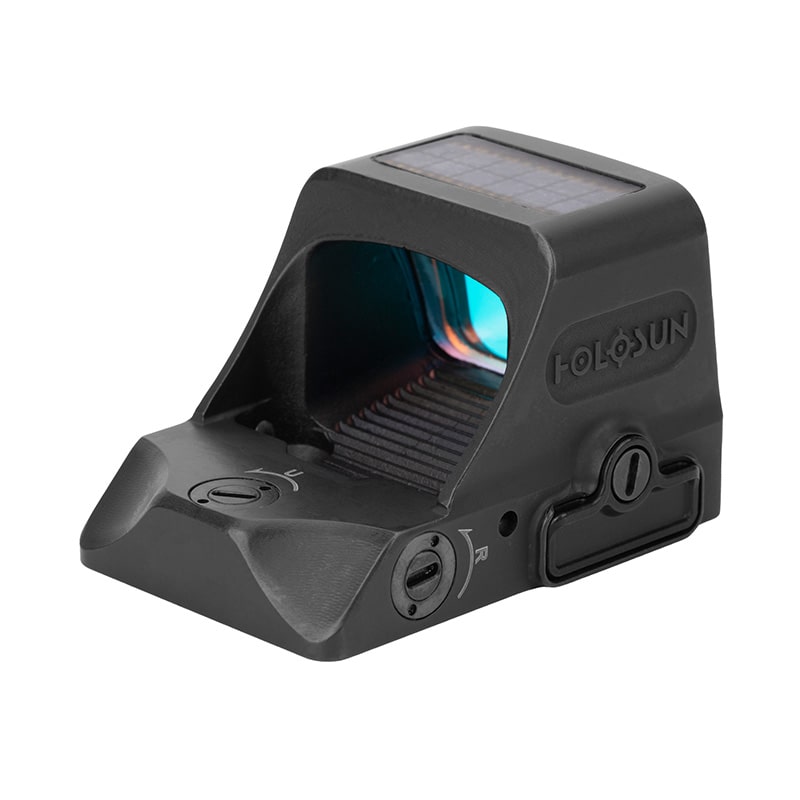

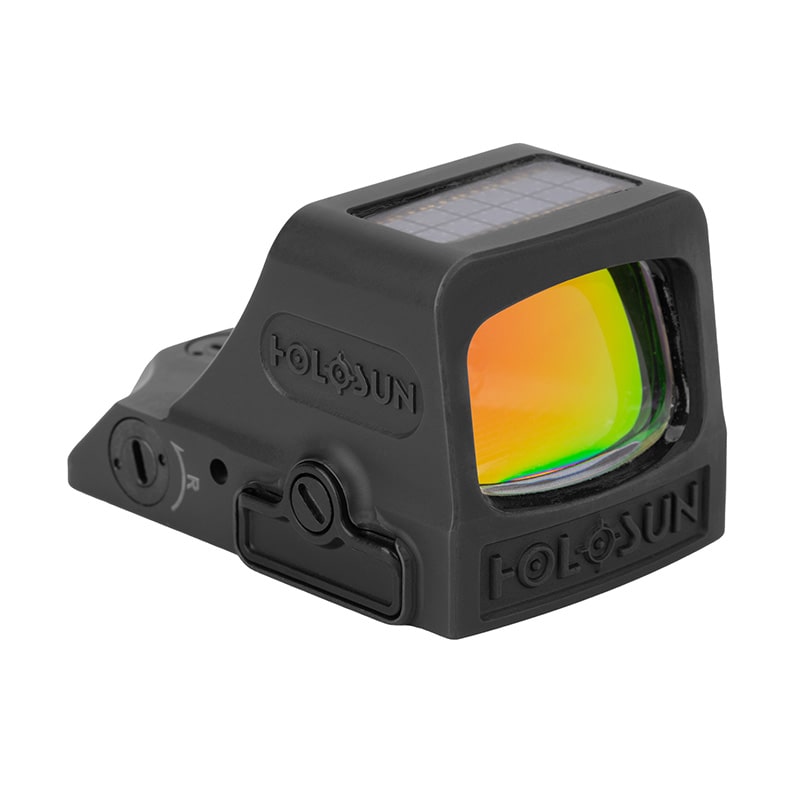

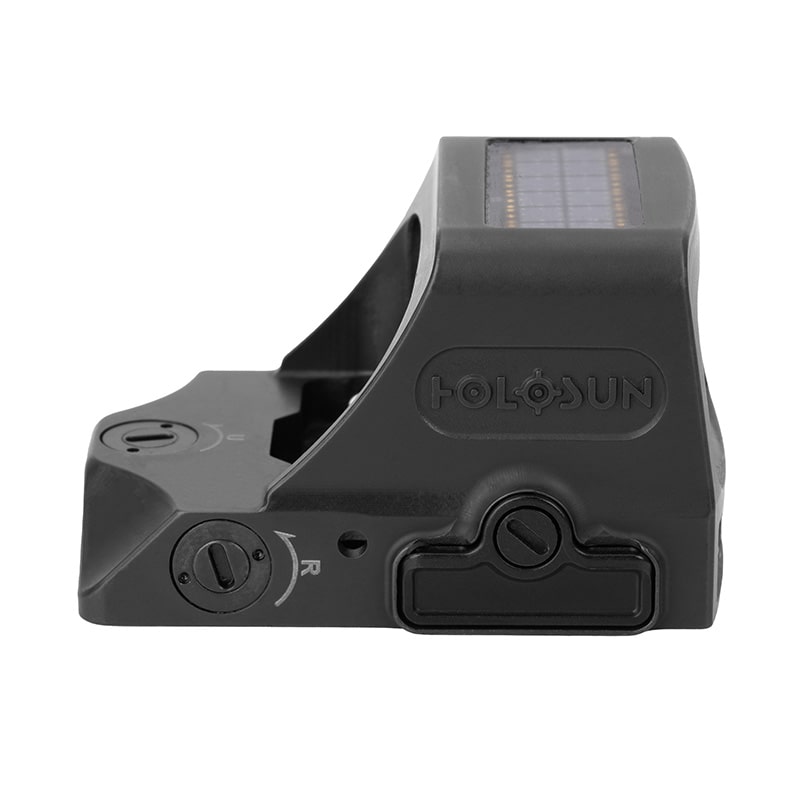

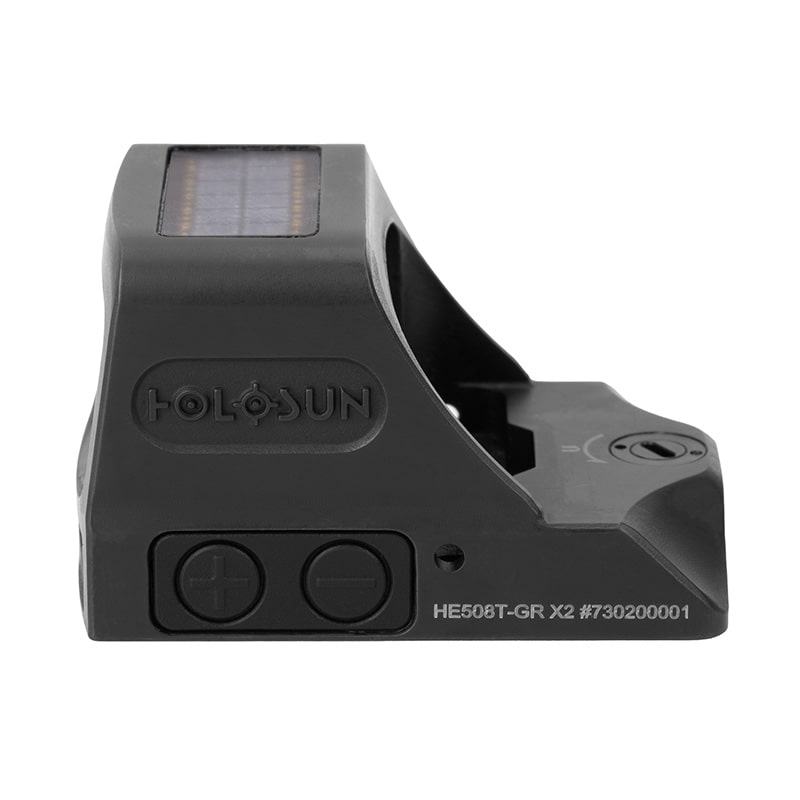

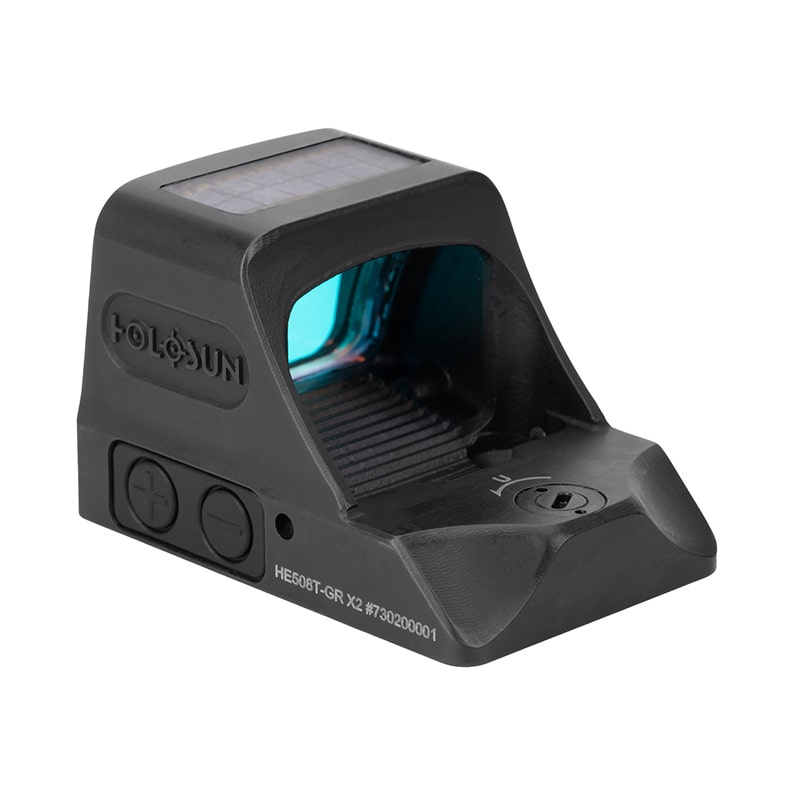

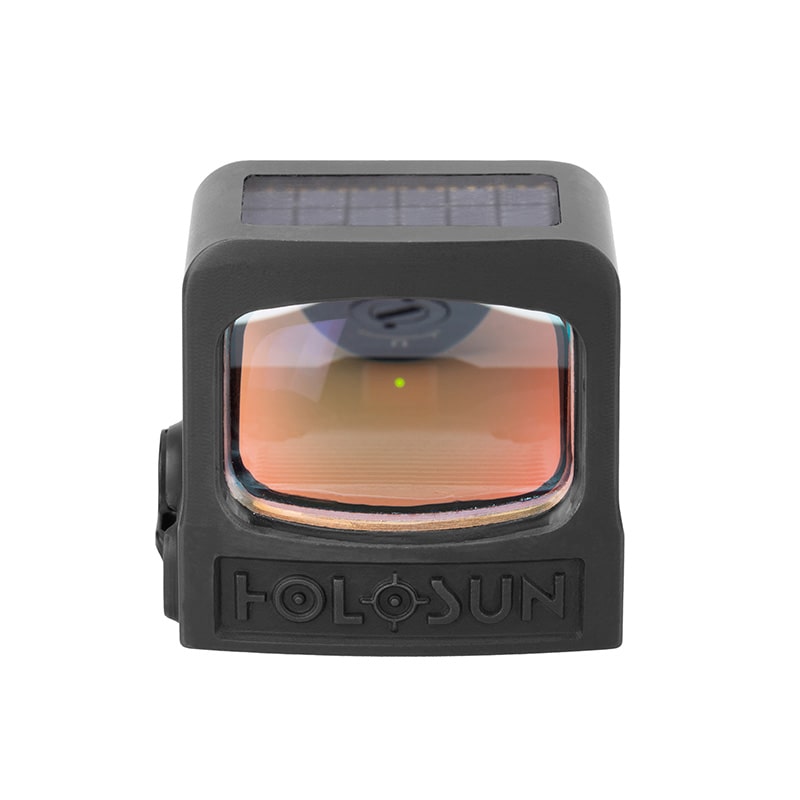

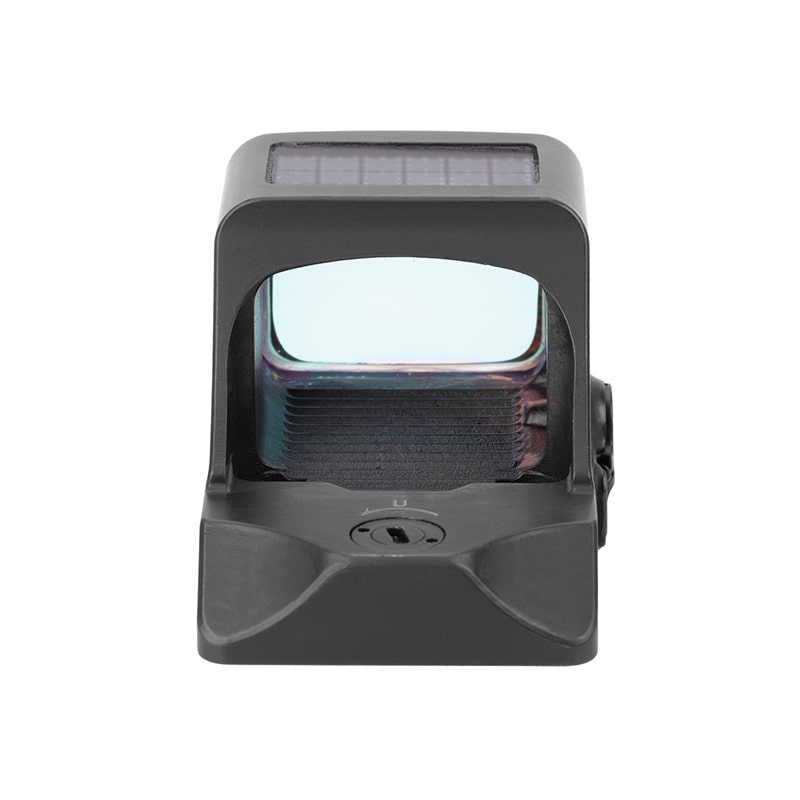

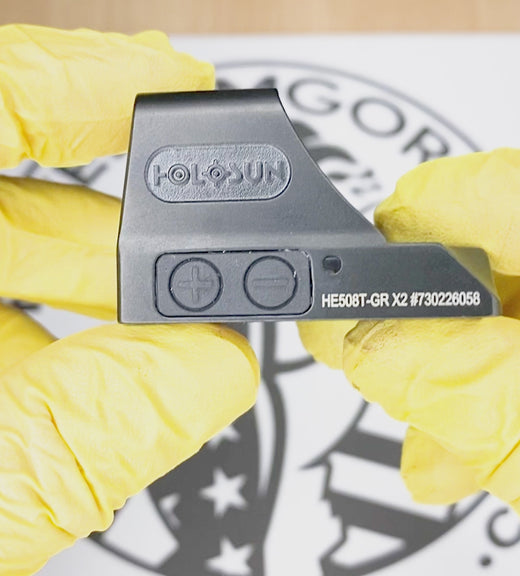

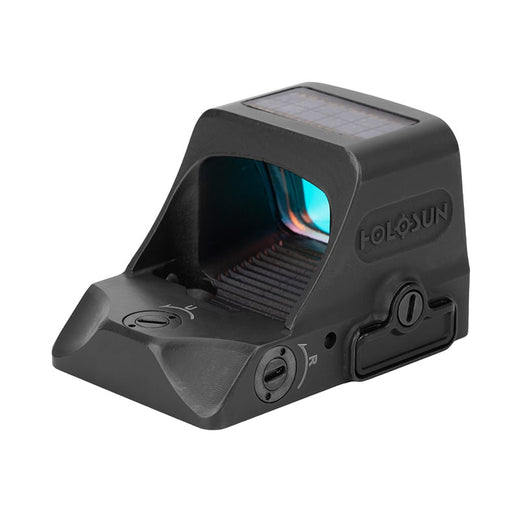

Holosun 508T Green X2 Reflex Sight, MRS Reticle, RMR Footprint - HE508T-GR-X2

Physical Specifications

• Footprint: RMR Footprint
• Recommended Applications: Full Size & Compact Pistols
• Housing Material: Grade 5 Titanium
• Window Size (in): 0.63Hx0.91W
• Deck Height: 8.72mm
• Dimensions (in): 1.78Lx1.15Wx1.15H
• Housing Finish: Anodize
• Housing Color: Black
• Weight: 2oz
• Magnification: 1x
• Parallax: None
• Eye Relief: Unlimited
• Multi Coated Lens: Yes
• Submersion Waterproof Rating: IP67
• Vibration: 5000G
• Storage Temperature: -40℃~70℃
• Working Temperature: -30℃~60℃

Included in the Box

• Picatinny Mount Included: no
• Screws Included: 6-32 x 9.5mm, 6-32 x 7.4mm
• Cover Included: no
• Lens Cloth: yes
• Multi Tool: yes
• Manual: yes
• Warranty Card: yes

Reticle Specifications

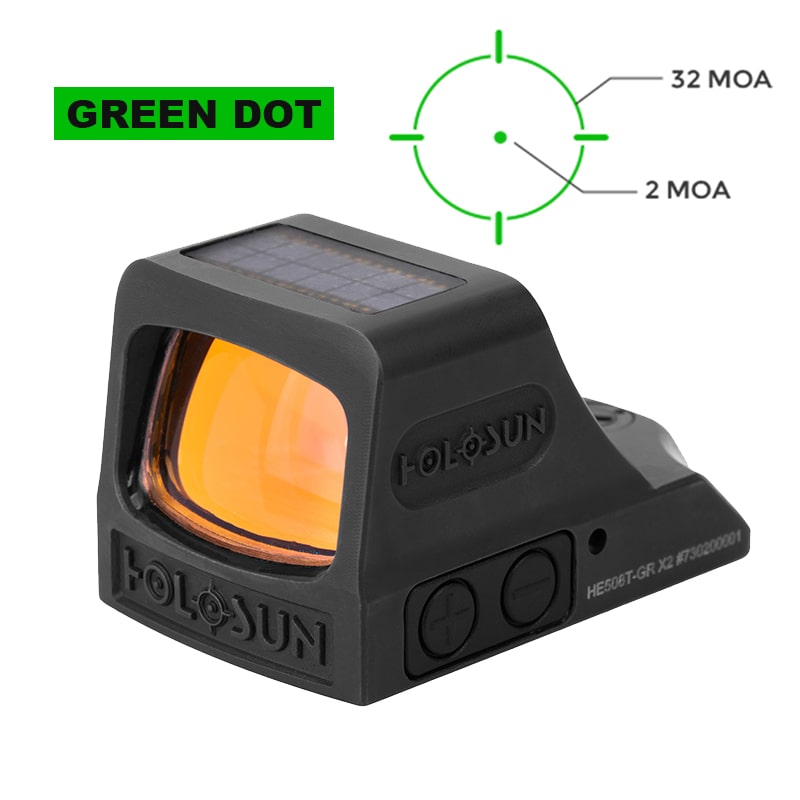

• Reticle Size: 32 MOA Outer Ring, 2 MOA Center Dot
• Reticle Color: Green
• Adjustment Per Click: 1 MOA
• W&E Travel Range: ±50 MOA

Electronic Specifications

• Solar Failsafe: Yes
• Auto Turn On: Yes
• Auto Turn Off: Yes
• Manual Brightness: Yes
• Automatic Brightness: Yes
• Brightness Settings: 10 Daylight, 2 Nightvision
• Lockout Mode: Yes

Battery Specifications

• Battery Type: CR1632
• Battery Life: 20,000 Hours (Ring + Dot) 50,000 Hours (Dot Only) (Both Setting 6)
• Removable Battery: Yes
• Battery Location: Side of Housing

Product Specifications

• Manufacturer: Holosun
• Manufacturer Part Number: HE508T-GR X2
• UPC: 810047071273
• Country of Origin: China

Anderson Manufacturing

• Anderson Kiger 9C Pro (Direct Fit)

Arsenal Democracy

• Arsenal Blackside E2 (Direct fit for RMR Cut Blackslide)

Bul Armory

• Bul Armory AXE (Direct Slide Fit)
• Bul Armory SAS II (Direct Slide Fit)

CZ

• CZ P10 Optics Ready (NeedsRMR Adapter Plate found here)
• CZ Shadow 2 Optics Ready (Needs thisRMR Adapter Plate)

FN

• FN 502 (Fits using included FN RMR plate and screws)
• FN Five-Seven (Fits using included FN RMR plate)
• FN 509/510/545 (Fits using included FN RMR plate and screws orRMR adapter plate found here)
• FNX-45 Tactical (Fits using included RMR plate and screws or thisRMR adapter plate)

Heckler & Koch

• H&K VP9 (needs an RMR adapter plate found here)

Kimber

• Kimber AEGIS & KHX (Needs RMR plate from Kimber)

Palmetto State Armory

• PSA 5.7 Rock (use included PSA RMR adapter plate)
• PSA Dagger Full Size & Compact (Direct slide fit for RMR Cut Daggers only)

Shadow Systems

• Shadow Systems MR/DR/XR920 (Direct slide fit, use proper spacers and screws, consult with SS manual)

Smith & Wesson

• S&W M&P 2.0 Full Size & Compact (Use included SW RMR Optic plate orRMR plate found here)

Staccato 2011

• Staccato 2011 (Need thisRMR plate)

Taurus

• Taurus G3 Tactical, G3/G3C T.O.R.O (use included Taurus RMR plate)
• Taurus TX22 Competition (use included Taurus RMR plate)

Tisas

• Tisas PX9 Gen 3 (Direct slide fit)

Wilson Combat

• Wilson Combat 1911's (Must have RMR slide cut or RMR plate from Wilson Combat)
• Wilson Combat Glocks (Must have RMR slide cut or plate from Wilson Combat)

Arex

• Arex Delta Gen 2 (Use included Arex RMR plate)
• Arex Zero 1 T/TC (Use included Arex RMR plate)

Beretta

• Beretta 92X Optics Ready (Needs thisBeretta RMR Plate)
• Beretta APX A1 Full Size (Needs thisBeretta RMR Plate)

Canik

• Canik METE (Requires thisRMR adapter plate)
• Canik TP9 (Use Canik TP9 RMR Plate sometimes included or thisRMR plate)
• Canik SFX Rival (Use Canik SFX Rival RMR Plate sometimes included orthis RMR plate)

FMK

• FMK 9C1 G3 & Elite (Direct slide fit for RMR cut sides only)

Glock

• Glock Full Size/Compact MOS Models (Use included Glock RMR plate or anRMR plate found here)

IWI

• IWI Masada/Tactical (Use included IWI RMR plate)

Nighthawk Custom

• Nighthawk Custom 1911's (Must have the Nighthawk IOS system andIOS RMR plate)

Sig Sauer

• Sig P220/P226/229 (Must use thisRMR Filler Platefor R1P Slides with RMR holes)
• Sig P320/M17/M18 (Must useRMR Filler plate or Adapter Plate found herefor R1P Slides)

Springfield Armory

• Springfield 1911 DS Prodigy (Need thisRMR adapter plate)
• Springfield Armory Echelon (Use Pin Set #1 or thisRMR adapter plate)
• Springfield XD-M Elite OSP Full Size & Compact (Need thisRMR plate)

Stoeger

• Stoeger STR9 (Use included Stoeger RMR optic plate)

Walther

• Walther PDP/PDP Compact (Use Walther RMR Plate,need to request hereor get thisRMR adapter plate)
• Walther PDP F-Series (Use Walther RMR Plate,need to request hereor get thisRMR adapter plate)
• Walther Q4, Q5, PPQ Tactical (Use Walther RMR Plate,need to request hereor get this adapter plate)
• Walther PDP 1.0 Optic Cut ((Use Walther RMR Plate, need to request here or get anRMR plate found here)
• Walther WMP (Use included Walther RMR adapter plate and screws)

Zev

• Zev OZ9/OZ9c (Direct slide fit)
• Zev Z320 (Direct slide fit)

Effective January 1, 2022:

Commercial Warranty Information:

Your Holosun product is warranted to be free of defects in materials and workmanship upon registration of the product for the lifetime of the product. This warranty specifically applies to the metal structure, optical and illumination systems. The metal structure/housing and optical system (glass) of your Holosun product is warrantied for the life of the product under normal, personal use. Under the Holosun Warranty, the illumination system (LED), is warrantied for 10 years from the manufacture date under normal, personal use. In the event of a confirmed defect under this warranty, we will, at our option, repair or replace the product with a Holosun product of similar type/function, and of equal or greater value. Holosun reserves the right to make substitutions for similar product/s if the warrantied model in question is no longer in production. This Holosun Warranty does not apply to: (a) asserted defects caused by normal wear and tear of any part including knobs, finish, etc.; (b) asserted defects caused by modification including; aftermarket finishes, unauthorized service, improper maintenance, acts of Nature; and (c) asserted defects involving subjective personal likes or judgments. Also, this warranty is null and void if modification or maintenance is provided by someone other than Holosun. Holosun may restrict warranty service for our products to the country from which Holosun or its authorized dealers originally sold the Holosun product. For warranty claims outside the United States, the costs of shipping or transporting the product (including to and from Holosun or our dealer), any insurance or any fees, duties and taxes are the sole responsibility of the purchaser and will not be covered by this warranty.

For customers inside of the United States seeking warranty service, please email info@holosun.com
