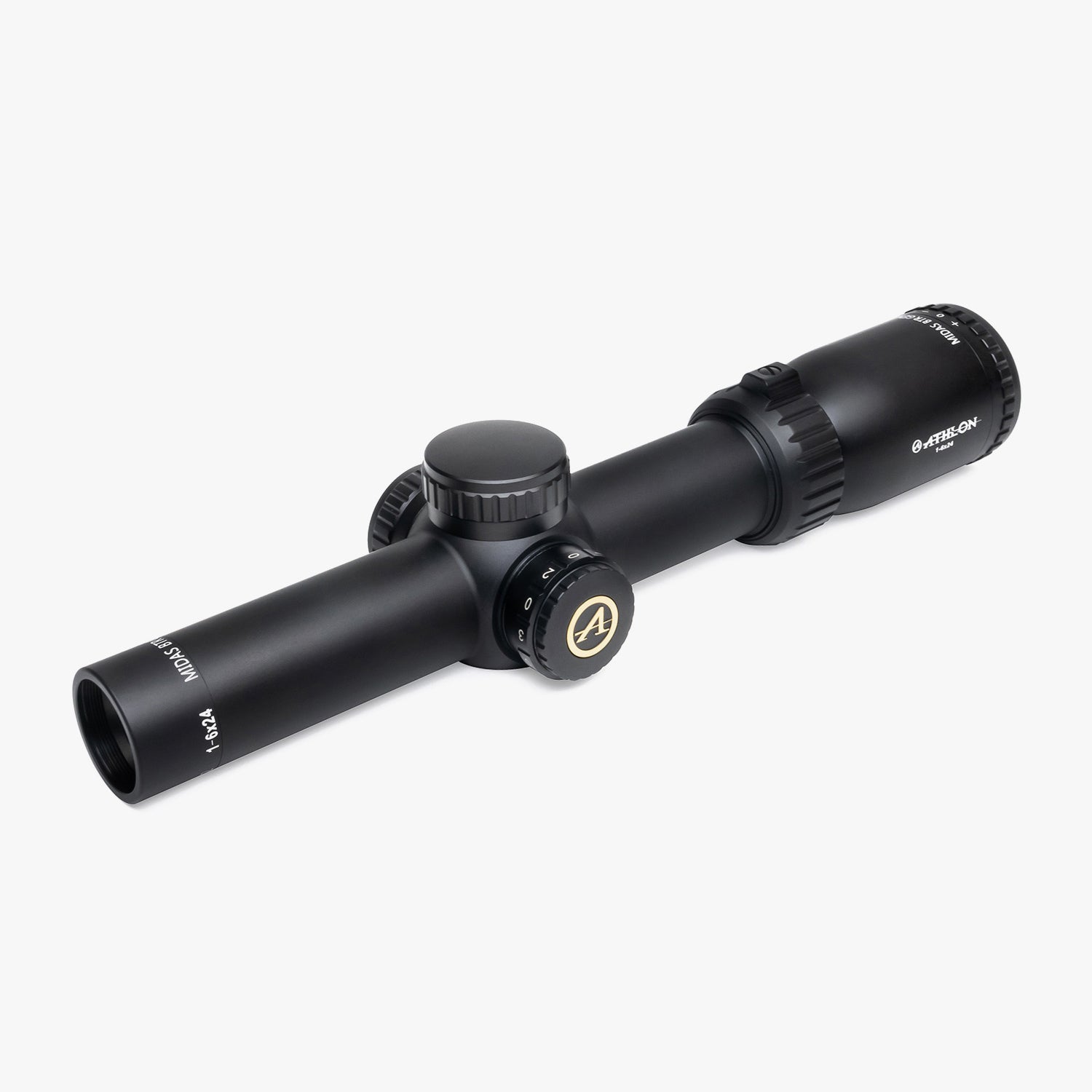

Athlon Midas BTR GEN2 HD 1-6x24 ATSR4 SFP IR Reticle - 213013

Product Details

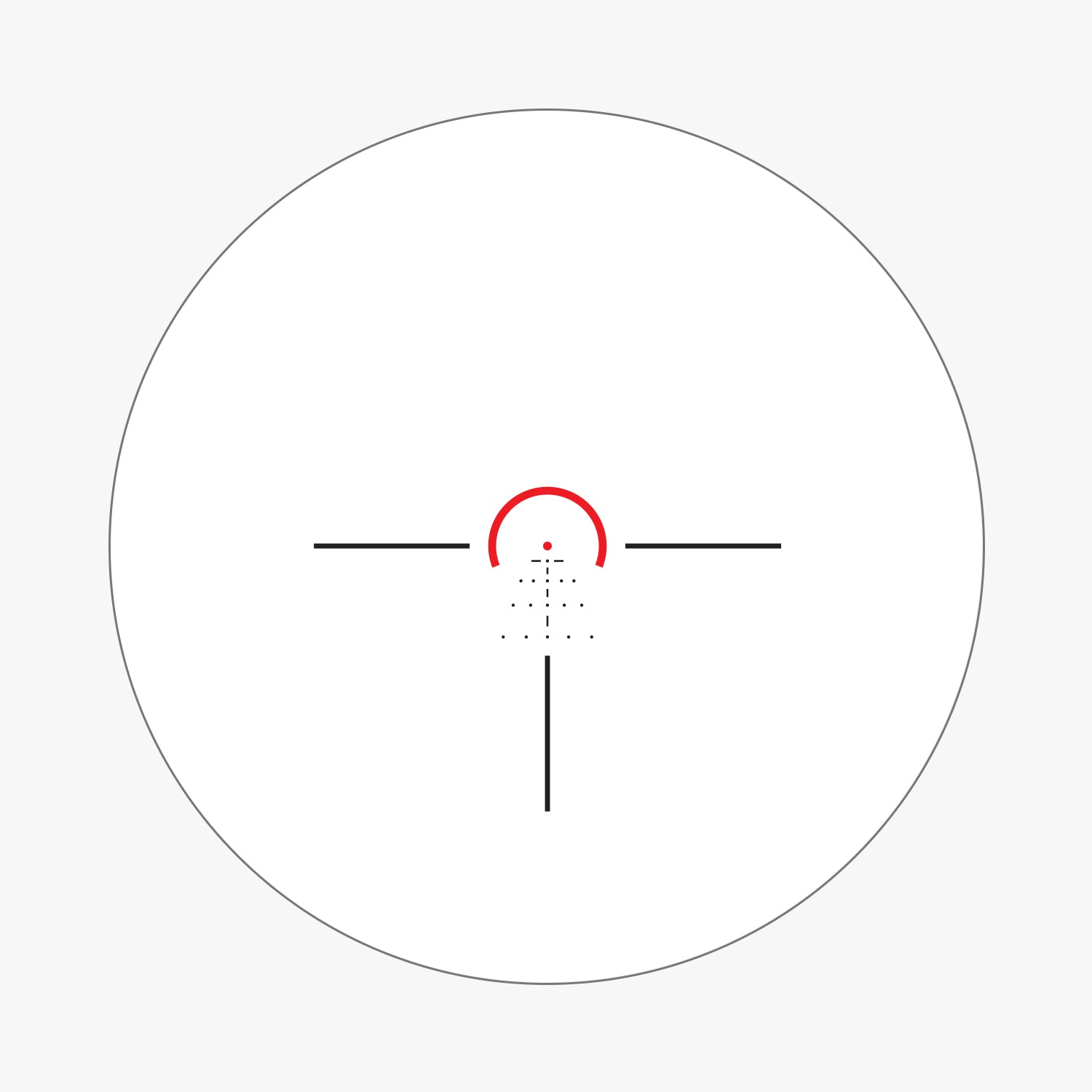

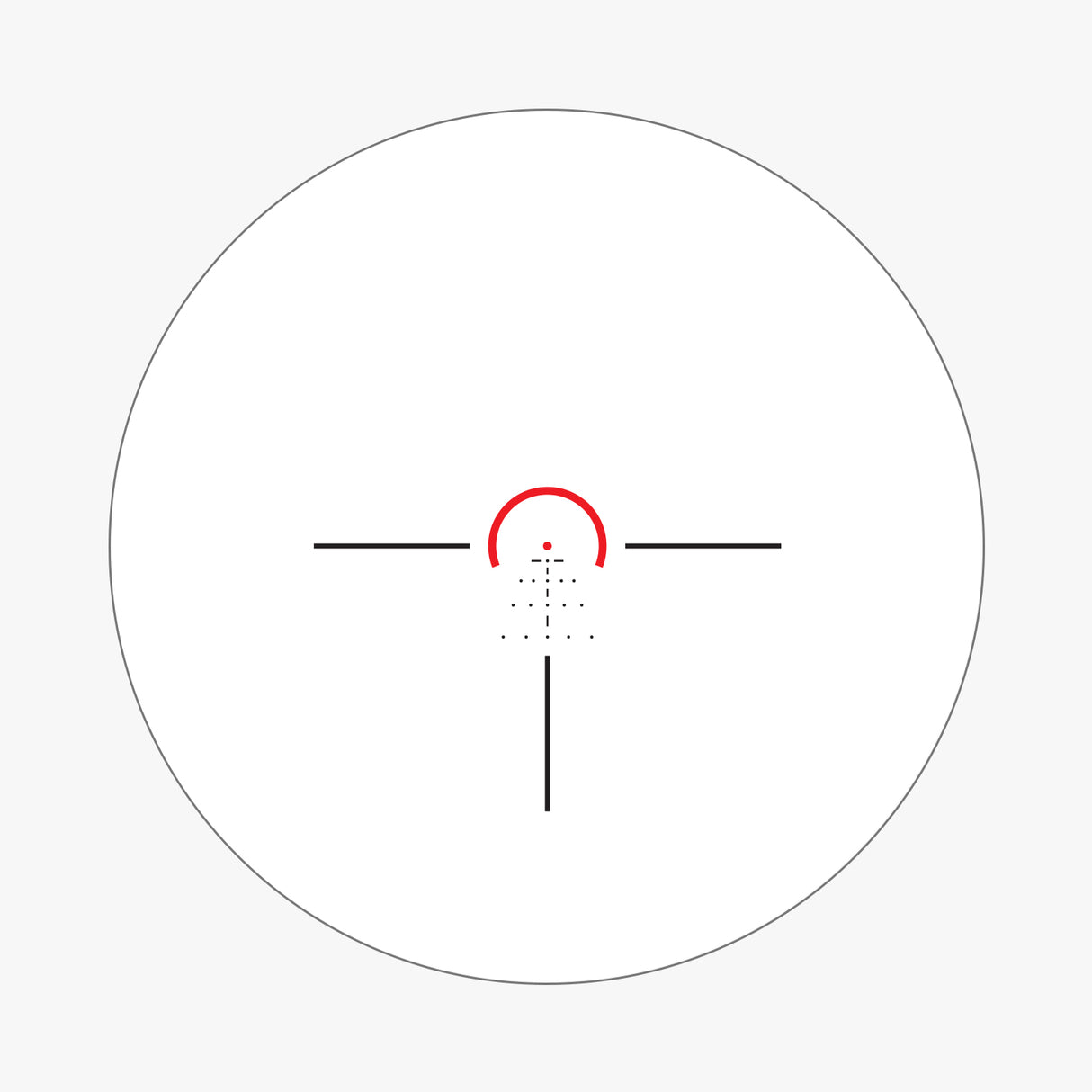

This Midas BTR GEN2 1-6×24 is equipped with ATSR4 reticle that is specifically designed for 3 gun competition. With hold over points for both bullet drop and wind compensation, the ATSR4 reticle is designed for 68 and 69 grain BTHP 223 Rem/5.56mm NATO rounds. It is also suitable for many other bullet weights in these calibers. The low profile capped turrets will ensure you stay zeroed. The 1.4 moa center red dot is perfect for zeroing your rifle at 200 yards. You can use the dots below the center red dot for targets at 300, 400, 500, and 600 yards. The unique design of the small size dots eliminate target obstruction on 12~18 inch targets beyond 200 yards and allow the shooter to take a quick shot. The dots on the left and right off the center line are the hold over points for 5 mph and 10 mph wind.

Specifications

Weight:18.1 oz
Length: 10.6"
Magnification: 1x-6x
Objective Size: 24mm
Tube Size: 30mm
Turret Adjustment Per Click: 0.25 MOA
Elevation Turret Specs: 120 MOA
Windage Turret Specs: 120 MOA
Parallax Adjustment: Fixed
Reticle Type: Second Focal Plane
Reticle Name: ATSR4 SFP IR MOA, Glass Etched illuminated
Field of View: 108ft - 17.6ft @ 100 yards
Exit Pupil: 12.5mm - 4mm
Eye Relief: 3.8"
Reticle Illumination: Yes
Scope Color: Black
Turret Rotation: Counter Clockwise (CCW)
UPC: 813869021495
