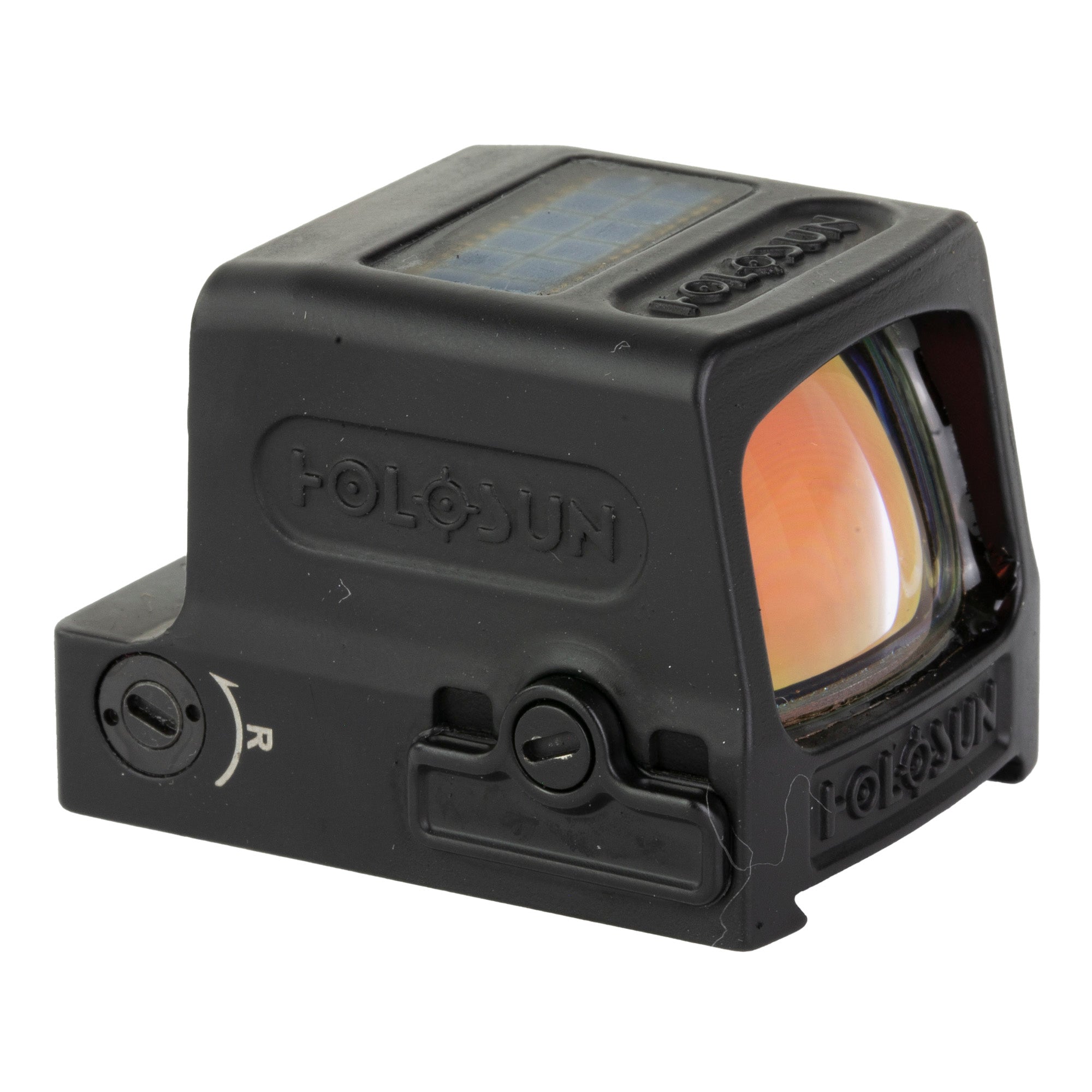

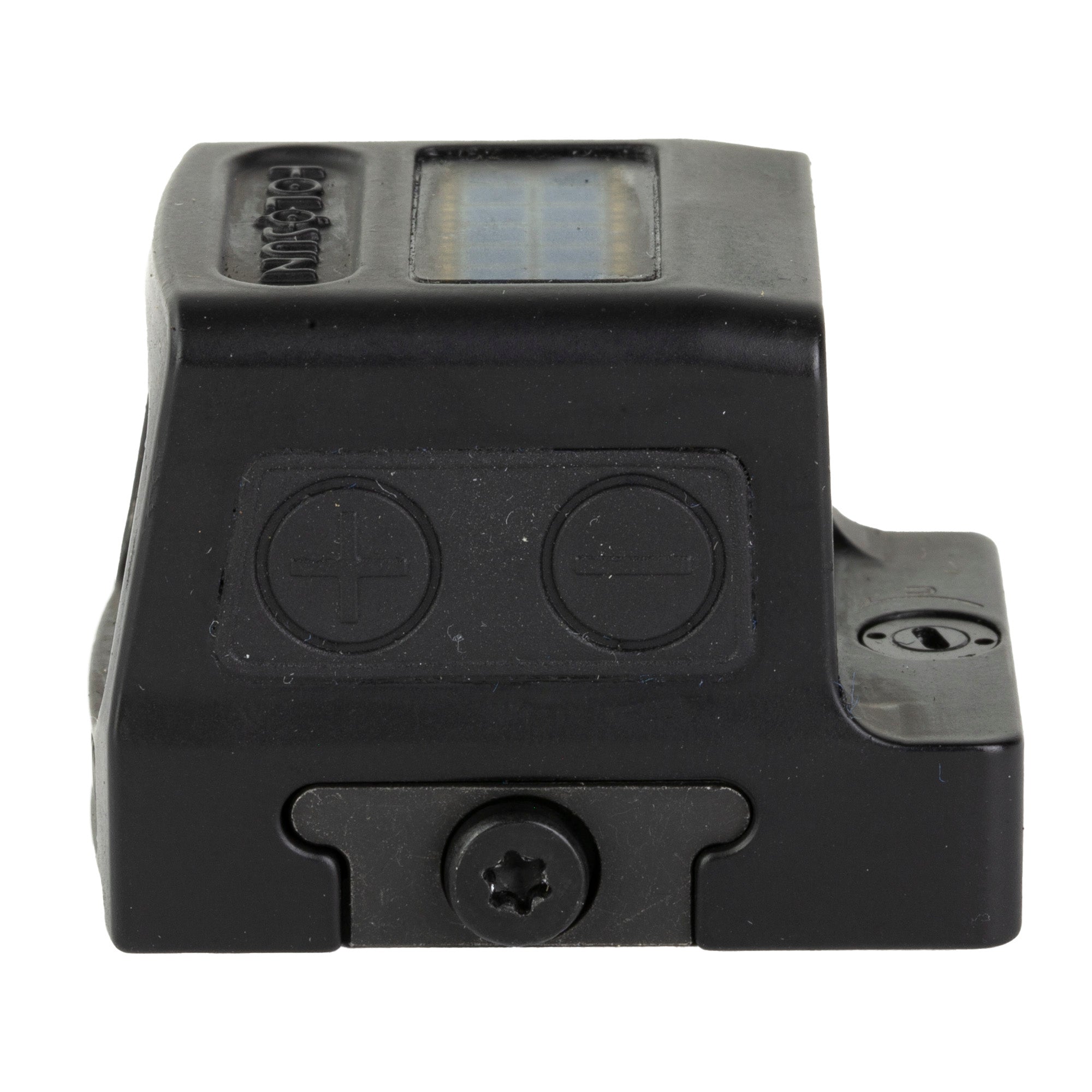

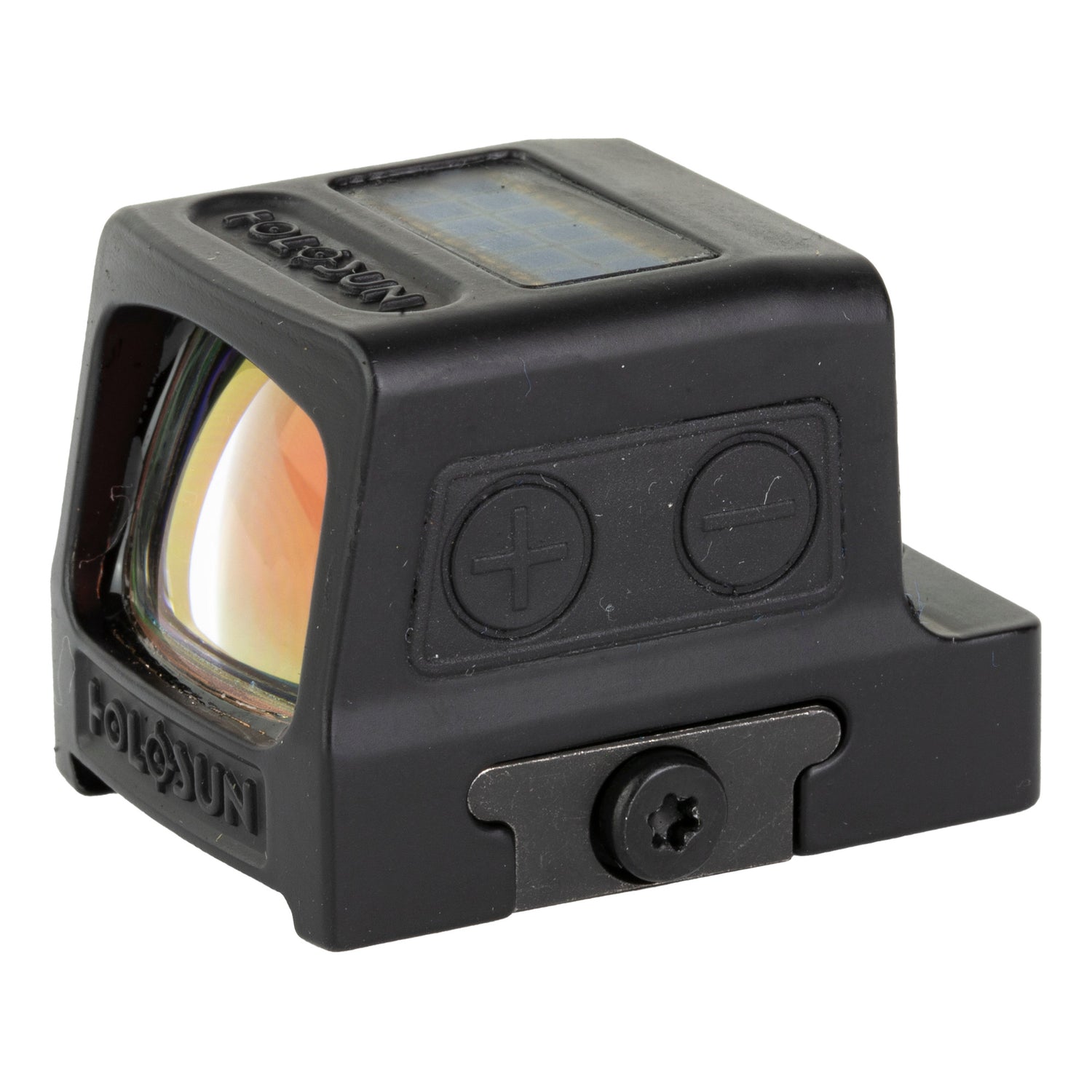

Holosun 509T X2, Red Dot, MRS Reticle, Closed Emitter, Titanium, Solar Failsafe, RMR Footprint - HE509T-RD-X2

Physical Specifications

• Enclosed Emitter: Yes
• Footprint: 509T Footprint, Includes RMR Adapter Plate
• Recommended Applications: Full Size & Compact Pistols
• Housing Material: Grade 5 Titanium
• Window Size (in): 0.66Hx0.9W
• Deck Height: 9.86mm (without RMR plate)
• Dimensions (in): 1.6Lx1.21Wx1.35H
• Housing Finish: Anodize
• Housing Color: Black
• Weight: 2.2oz (3.4oz with RMR plate)
• Magnification: 1x
• Parallax: None
• Eye Relief: Unlimited
• Multi Coated Lens: Yes
• Submersion Waterproof Rating: IP67
• Vibration: 5000G
• Storage Temperature: -40℃~70℃
• Working Temperature: -30℃~60℃

Included in the Box

• Picatinny Mount Included: no
• Adapter Plate Included: yes, RMR to 509T
• Screws Included: 6-32x1/4
• Cover Included: no
• Lens Cloth: yes
• Multi Tool: yes
• Manual: yes
• Warranty Card: yes

Reticle Specifications

• Reticle Size: 32 MOA Outer Ring, 2 MOA Center Dot (MRS)
• Reticle Color: Red
• Adjustment Per Click: 1 MOA
• W&E Travel Range: ±30 MOA

Electronic Specifications

• Solar Failsafe: Yes
• Auto Turn On: Yes
• Auto Turn Off: Yes
• Manual Brightness: Yes
• Automatic Brightness: Yes
• Brightness Settings: 10 Daylight, 2 Nightvision
• Lockout Mode: Yes

Battery Specifications

• Battery Type: CR1632
• Battery Life: 20,000 Hours (Ring + Dot) 50,000 Hours (Dot Only) (Both Setting 6)
• Removable Battery: Yes
• Battery Location: Side of Housing

Product Specifications

• Manufacturer: Holosun
• Manufacturer Part Number: HE509T-RD X2
• UPC: 810047071600
• Country of Origin: China

Effective January 1, 2022:

Commercial Warranty Information:

Your Holosun product is warranted to be free of defects in materials and workmanship upon registration of the product for the lifetime of the product. This warranty specifically applies to the metal structure, optical and illumination systems. The metal structure/housing and optical system (glass) of your Holosun product is warrantied for the life of the product under normal, personal use. Under the Holosun Warranty, the illumination system (LED), is warrantied for 10 years from the manufacture date under normal, personal use. In the event of a confirmed defect under this warranty, we will, at our option, repair or replace the product with a Holosun product of similar type/function, and of equal or greater value. Holosun reserves the right to make substitutions for similar product/s if the warrantied model in question is no longer in production. This Holosun Warranty does not apply to: (a) asserted defects caused by normal wear and tear of any part including knobs, finish, etc.; (b) asserted defects caused by modification including; aftermarket finishes, unauthorized service, improper maintenance, acts of Nature; and (c) asserted defects involving subjective personal likes or judgments. Also, this warranty is null and void if modification or maintenance is provided by someone other than Holosun. Holosun may restrict warranty service for our products to the country from which Holosun or its authorized dealers originally sold the Holosun product. For warranty claims outside the United States, the costs of shipping or transporting the product (including to and from Holosun or our dealer), any insurance or any fees, duties and taxes are the sole responsibility of the purchaser and will not be covered by this warranty.

For customers inside of the United States seeking warranty service, please email info@holosun.com

Anderson Manufacturing

• Anderson Kiger 9C Pro (Will fit using included 509T RMR adapter plate)

Arsenal Democracy

• Arsenal Blackside E2 (Will fit RMR cut Blackslide using included 509T RMR adapter plate)

Bul Armory

• Bul Armory SAS II (Will fit using included 509T RMR adapter plate)

CZ

• CZ P10 Optics Ready (Need thisadapater plate)

FN

• FN 502 (May fit using RMR plate + included 509T adapter plate, confirm FN screw thread pitch first)
• FN Five-Seven (Needs thisadapter plate)
• FN 509/510/545 (Needs a 509T platefound here)

Heckler & Koch

• H&K VP9 (Needs this509T adapter plate)

Palmetto State Armory

• PSA 5.7 Rock (use PSA Rock RMR plate + included 509T RMR adapter plate)
• PSA Dagger Full Size & Compact (use included 509T RMR plate)

Shadow Systems

• Shadow Systems MR/DR/XR920 (need this 509T adapter plate)

Smith & Wesson

• S&W Equalizer (needs this509T adpater plate)
• S&W M&P 2.0 Full Size & Compact (will fit using SW RMR plate + included 509T RMR adapter plate or will mount with just one plate by getting a 509T adapter platefound here)
• S&W M&P 5.7(needs this 509T adpater plate)

Staccato 2011

• Staccato 2011 (needs 509T adapter platefound here)

Taurus

• Taurus G3 Tactical, G3/G3C T.O.R.O (will fit using Taurus RMR plate + included 509T RMR plate or will mount with just one plate by getting a this509T adapter plate)
• Taurus TX22 Competition (will fit using Taurus RMR plate + included 509T RMR plate)

Wilson Combat

• Wilson Combat 1911's (will fit using the Trijicon RMR plate + the included 509T RMR Plate)
• Wilson Combat Glocks(will fit using the Trijicon RMR plate + the included 509T RMR Plate)

Arex

• Arex Delta Gen 2 (will fit using Arex Plate #2 + included 509T RMR plate)
• Arex Zero 1 T/TC (will fit using Arex RMR plate + included 509T RMR plate)

Beretta

• Beretta 92X Optics Ready (needs this Beretta Plate and should work with included 509T RMR adapter plate)

FMK

• FMK 9C1 G3 & Elite (Will fit using included 509T RMR adapter plate)

Glock

• Glock Full Size/Compact MOS Models (will fit using Glock MOS RMR plate + included 509T RMR plate. If you want just one adapter plate total get an 509T adapter plate here)

IWI

• IWI Masada/Tactical (use IWI Masada RMR plate + included 509T RMR adapter plate or to use just one plate get this509T adapter plate)

Nighthawk Custom

• Nighthawk Custom 1911's (will need the Nighthawk 509T IOS plate here)

Sig Sauer

• Sig P220/P226/229 (will need 509T plate found here)
• Sig P320/M17/M18 (will need 509T adapter plate found here)

Springfield Armory

• Springfield 1911 DS Prodigy (needs this509T adapter plate)
• Springfield Armory Echelon (can mount using 509T RMR adapter plate but will needthese screws or you can get this509T adapter plate)
• Springfield XD-M Elite OSP Full Size & Compact (can get this Springfield plate and these screws and use the included 509T RMR adapter plate)

Stoeger

• Stoeger STR9 (will fit using Stoeger RMR plate + included 509T RMR adapter plate)

Walther

• Walther PDP 1.0 (can get Walther PDP 1.0 RMR plate here + use the included 509T adapter plate or can use only one plate by getting a 509T plate found here)
• Walther PDP/PDP Compact (can get Walther PDP 509T plate here or can get this509T adapter plate)
• Walther PDP F-Series(can get Walther PDP 509T plate here or can get this 509T adapter plate)
• Walther Q4, Q5, PPQ Tactical (can get Walther Q4, Q5, PPQ RMR plate here + use the included 509T RMR plate or can use only one plate by getting a 509T plate found here)
• Walther WMP (can use Walther WMP RMR plate + 509T RMR  adapter plate)
