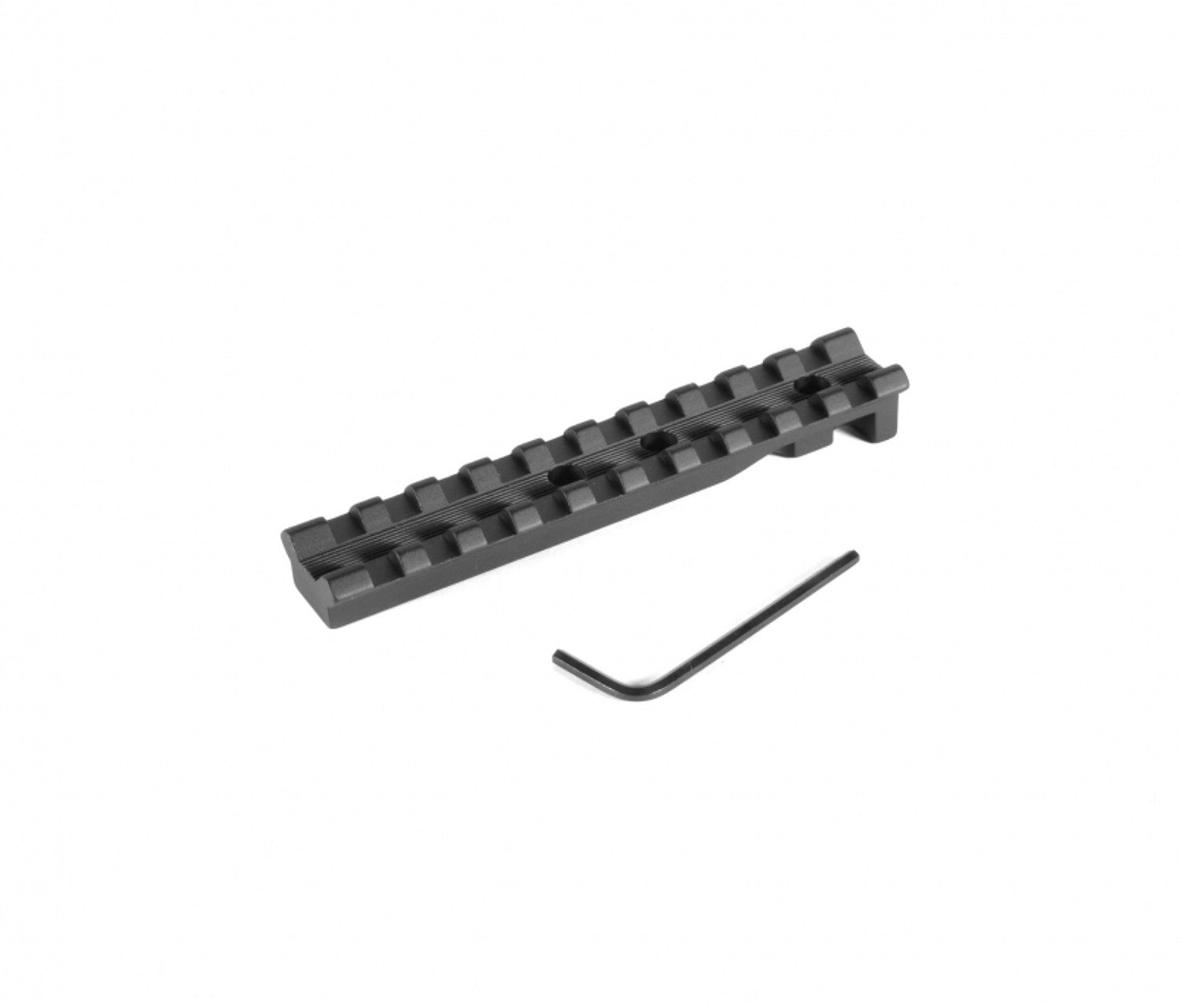

Ruger Revolver Picatinny Rail

DESCRIPTION

Mounting Hardware is Included

This mount fits:

• Ruger Blackhawk
• Ruger Super Blackhawk
• Ruger Redhawk
• GP100 (with adjustable rear sights)
• GP100 Match Champion

This mount does not fit:

• Ruger Flattop Revolvers
• Ruger Super Redhawk

Due to manufacturing variances in the Ruger's top strap, this mount may require the pad on the bottom to be filed to fit the rear sight cut out.

This rail mounts using the hole from your rear sight, but also requires you to drill and tap two additional holes in your receiver if your gun is not already drilled and tapped.

The mount is also available undrilled to accommodate unconventional bolt patterns.

SPECIFICATIONS

• Rail Type: One Piece Picatinny
• Machined from: Domestic 6061 T6 Extruded Aluminum
• Finish: Matte Black Anodizing
• Overall Length: 4.3"
• Height: .4" (Top of Receiver to Top of Picatinny)
• Weight: 2 oz.
• Quick Disconnect Ring Compatible: No
• Ambidextrous: Yes
• Torque Specs: 20 in/lbs
• Mounting Hardware: #8-40 X 3/8 SHCS & 6-48 X 9/16 SHC Screws and T-10 Bit Included

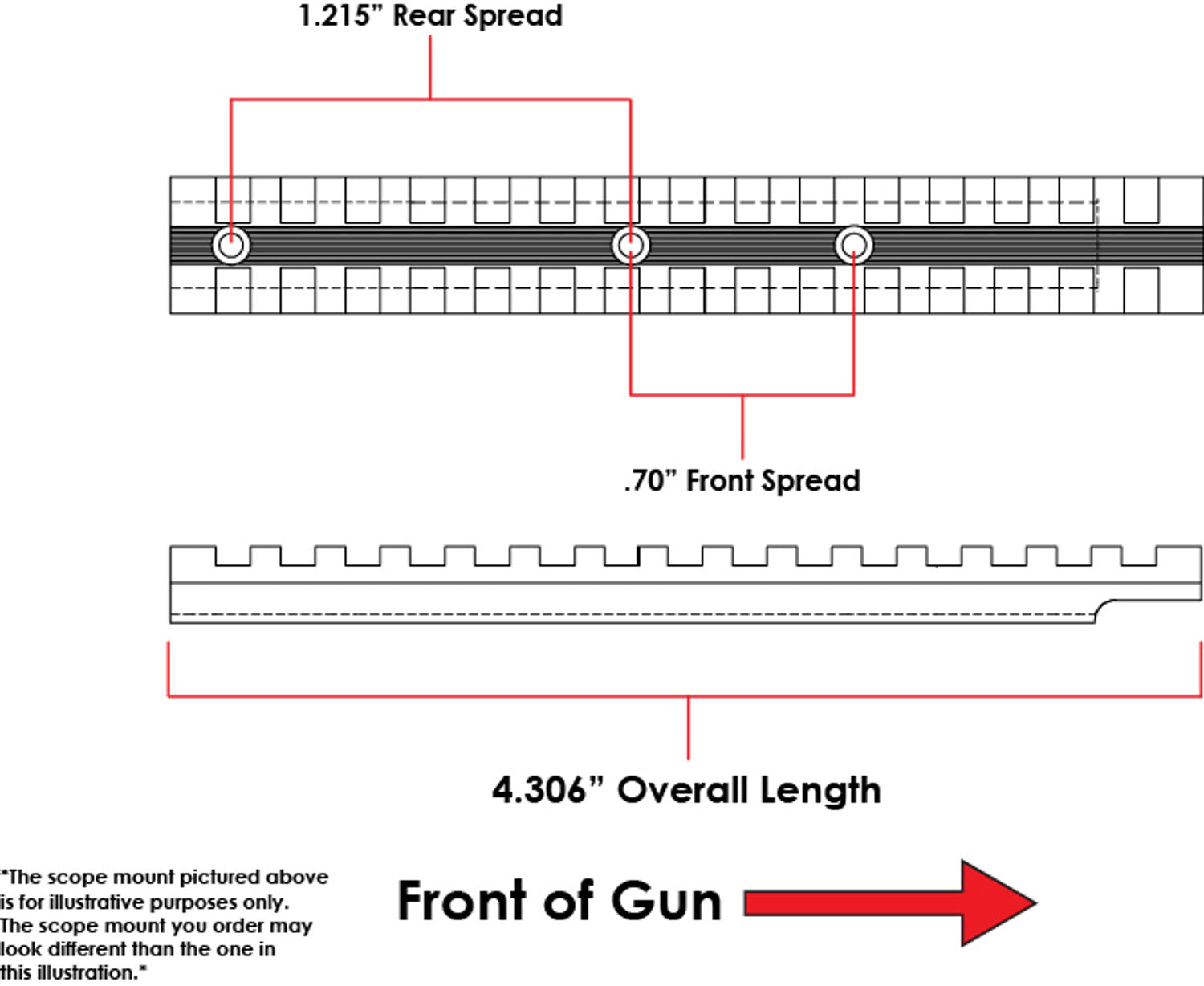

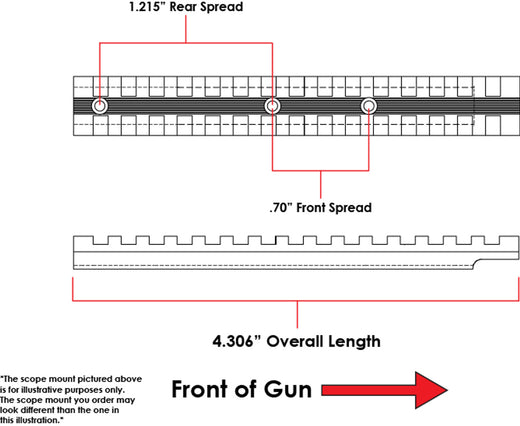

We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.

Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.

We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.

Installation: We recommend 20 inch lbs of torque and a drip of blue loctite (loctite is available through our website and is sold separately).

The entire mount and accessories (from the mounting screws and wrench down to the packaging) are made in the USA.
