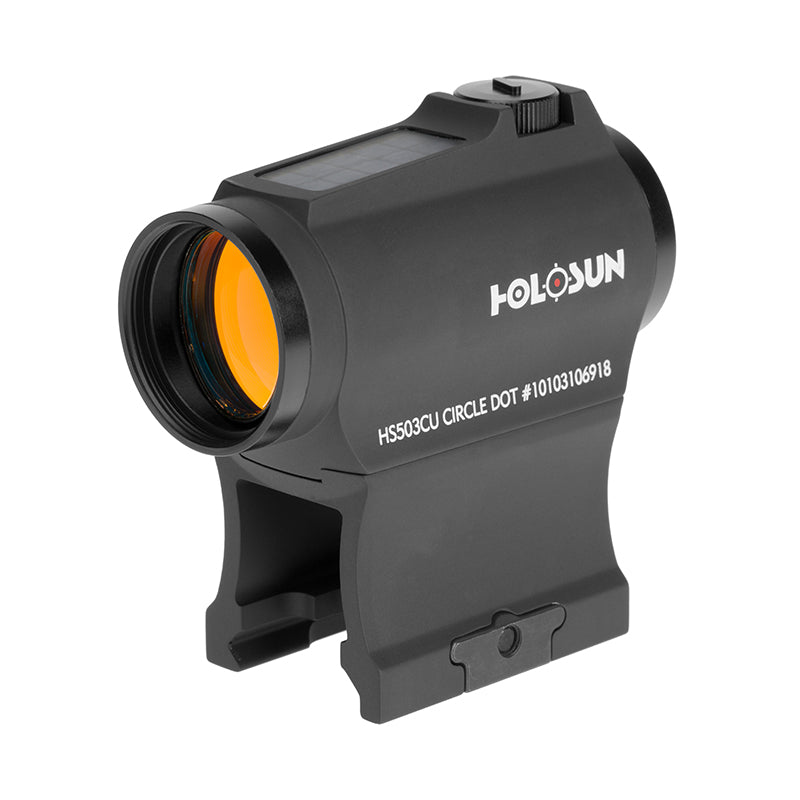

The Holosun HS503CU is a solar-assisted micro red dot sight built for AR-15 carbines, pistol-caliber carbines, and duty rifles where fast target acquisition and long-term battery reliability are both non-negotiable. The "U" suffix designates an updated housing that shrouds the windage and elevation turrets on two sides, reducing the risk of accidental zero shift from contact with gear or barricades. The optic ships with both a low mount and a lower-1/3 co-witness mount, making it immediately deployable on any standard flat-top AR without additional hardware.

The HS503CU weighs 3.0 oz without a mount, measures 2.6" L x 1.43" W x 1.6" H, and fits any standard 1913 Picatinny rail. It is rated IP67 waterproof, meaning it can be submerged to 1 metre for up to 30 minutes.

Multi-Reticle System: 2 MOA Dot and 65 MOA Circle

The Multi-Reticle System (MRS) is one of the defining features of the HS503CU, and understanding how it works helps shooters get the most out of this optic across different engagement distances and conditions.

Choosing the Right Reticle for the Job

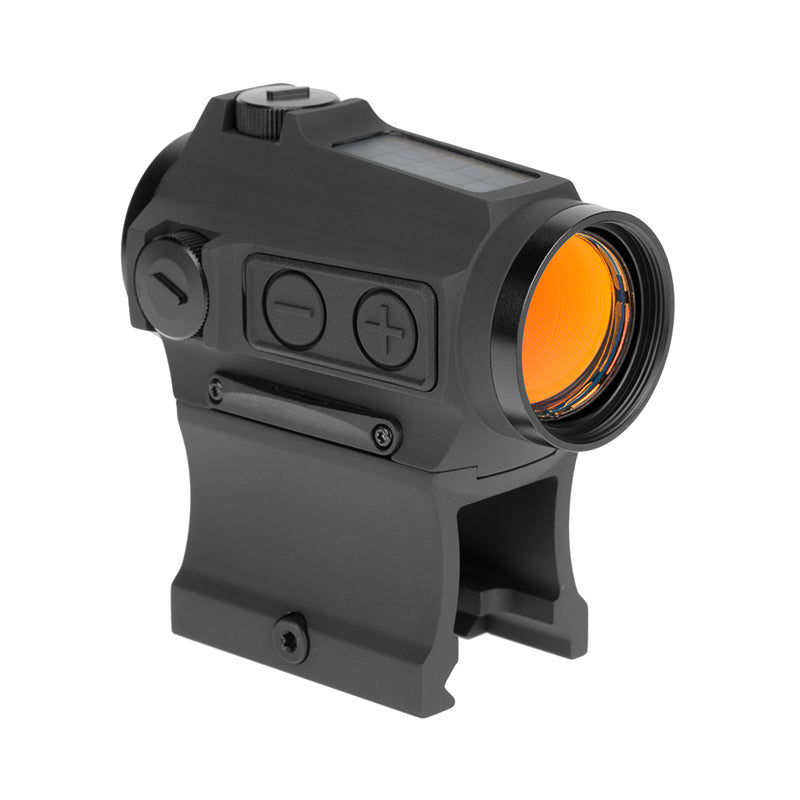

The HS503CU offers two reticle configurations: a standalone 2 MOA dot, or the combined 2 MOA dot inside a 65 MOA circle. To cycle between them, the optic must be in Manual Mode; you then press and hold the minus ("-") button for 3 seconds. This toggles the outer ring on or off without altering your preset manual brightness intensity level. Note that when the optic is running in its default Automatic (Solar) Mode, the full circle-dot reticle remains permanently active.

The 65 MOA circle is sized to cover roughly a 68-inch target area at 100 yards. At speed, the eye locks onto the large ring naturally, while the 2 MOA center dot handles precision work. For shots beyond 50 yards, switching to the standalone 2 MOA dot provides a cleaner sight picture with less visual clutter. Most shooters running this system zero the HS503CU at 50 yards, which keeps the point of impact within a practical margin from 0 to 200 yards with minimal physical holdover correction.

Solar Power and Battery Life

The HS503CU uses Holosun's Super LED and solar failsafe system, which allows the optic to run indefinitely on solar power alone in bright outdoor conditions. In low-light or indoor environments, the internal CR2032 battery takes over automatically with no user input required.

Battery life on the dot-only setting reaches up to 50,000 hours at Setting 6 (mid-brightness). At maximum brightness, expect approximately 600 hours. When running the full circle-dot reticle, the CR2032 battery provides up to 20,000 hours of continuous use. The convenient tray-style battery compartment allows for easy power cell replacement without removing the optic from the rail or stripping your zero.

Shake Awake and Standby Performance

Shake Awake motion-activation wakes the optic from standby within milliseconds of movement and powers it down automatically after a user-selected timeout of 10 minutes, 1 hour, or 12 hours (the sleep timer can also be completely disabled). This extends battery life significantly without requiring a manual shutoff between uses.

For shooters looking at the broader range of Holosun rifle red dots available, the 503CU sits in the micro red dot category and is one of the most compact options Holosun offers for Picatinny-mounted rifle applications. The solar panel and Shake Awake combination make it particularly well-suited for builds where the optic may sit in storage between extended range sessions.

Durable Construction and IP67 Waterproofing

The HS503CU housing is machined from durable 6061-T6 aluminum, a highly resilient structural alloy commonly used in premium firearms components and receivers. It is rated IP67 waterproof, certified for submersion to 1 metre for up to 30 minutes, and is designed to perform without degradation in extreme weather conditions.

The "U" Housing Upgrade

The "U" in HS503CU designates the updated housing variant with turret shrouds on two sides of the body. These shrouds protect the windage and elevation adjustment caps from incidental contact during use, reducing the likelihood of zero shift from hard use or transport. The turrets themselves are tool-adjustable capped caps that hold zero reliably under sustained recoil.

The optic features 12 distinct brightness settings, which include 10 daylight intensity levels and 2 dedicated night-vision-compatible options. The ultra-low NV settings are technically compatible with Generation 2 and Generation 3 passive night vision image intensifier tubes, making the 503CU fully compatible with NVG-equipped users.

Mount Options and Co-Witness Setup

The 503CU ships with two mounts in the box: a low mount for low-profile platforms (like AKs, shotguns, or sub-guns) and a high riser mount that provides a lower-1/3 co-witness for use with backup iron sights on a flat-top AR. Both attach directly to a standard 1913 Picatinny rail with no adapter required.

The wide selection of Holosun rifle optics available at Freedom Gorilla covers everything from full-size tube designs to compact micro red dots, but the 503CU stands out specifically because it includes both mount heights in the box, eliminating the need to source additional hardware at checkout.

Absolute vs. Lower-1/3 Co-Witness

Absolute co-witness positions the red dot at the same height as standard iron sights. When looking through the optic, the front sight post bisects the dot, giving a single unified sight picture. This works well with fixed A2-style irons or any build where the shooter prefers a clean, combined reference.

Lower-1/3 co-witness is the more common choice for AR-15 flat-top builds running flip-up backup sights. The dot sits higher in the field of view, keeping backup irons visible in the lower portion of the lens during normal use. The included high mount is immediately compatible with standard flat-top AR-15 and pistol-caliber carbine builds. Note that achieving an absolute co-witness on a flat-top AR-15 requires a separate aftermarket mount, as it is not included in the box.

How the HS503CU Compares

The 503CU occupies a specific position in the Holosun micro red dot lineup. Comparing it to nearby options helps clarify which optic fits a given build.

he green dot version of this optic is actually designated as the HE503CU-GR. The '503GU' is an entirely different, older model that lacks a solar panel and uses a completely different battery housing setup. Some shooters find green dots easier to pick up in bright daylight, and a portion of shooters with astigmatism report that green dots appear crisper than red. The Aimpoint Micro T-2 runs on a single CR2032 lithium battery (not a AAA battery) with no solar backup and no MRS.. It carries a strong duty track record but comes at a significantly higher price point and offers less reticle flexibility than the 503CU.

Exploring the Full Holosun Red Dot Lineup

For shooters who want to compare the 503CU against other Holosun circle-dot configurations or explore options across dot color, emitter type, and window size, the full Holosun red dot optics collection covers the complete range. If dual-optic or magnifier-paired setups are on the table, the Holosun dual optics collection includes paired configurations designed to run alongside the 503CU and similar micro red dots on Picatinny-railed platforms.

Add the Holosun HS503CU to Your Build

The Holosun HS503CU delivers a capable combination of solar-assisted power, a versatile Multi-Reticle System, and a compact 6061-T6 aluminum housing built for hard use. With both a low mount and a high riser mount included and immediate Picatinny compatibility, it is one of the more complete out-of-the-box micro red dot packages available in this category. Add it to your cart above or contact Freedom Gorilla with any fitment questions before you order.

Frequently Asked Questions

What reticle options does the Holosun 503CU offer?

The HS503CU features a Multi-Reticle System with two configurations: a standalone 2 MOA dot or a combined 2 MOA dot with a 65 MOA circle. It does not offer a circle-only mode. The reticle is changed by holding down the minus (-) button for 3 seconds while in Manual Mode.

What battery does the Holosun 503CU use?

The HS503CU uses a CR2032 coin cell battery. It is widely available and the tray-style compartment allows replacement without removing the optic from the rail.

Is the Holosun 503CU compatible with night-vision devices?

Yes. Two of the 12 brightness settings are night-vision compatible with Generation 2 and Generation 3 image intensifier tubes.

Can the Holosun 503CU be mounted on a pistol?

The 503CU uses a 1913 Picatinny rail footprint and is optimized for rifles and carbines. It is not designed for direct pistol slide mounting.

What is the difference between the Holosun HS503CU and the HE503CU-GR?

The HE503CU-GR is the actual green dot version of this optic. The older '503GU' model is completely different—it lacks a solar panel, features an external battery cap design instead of a tray, and is built on a different housing style.
